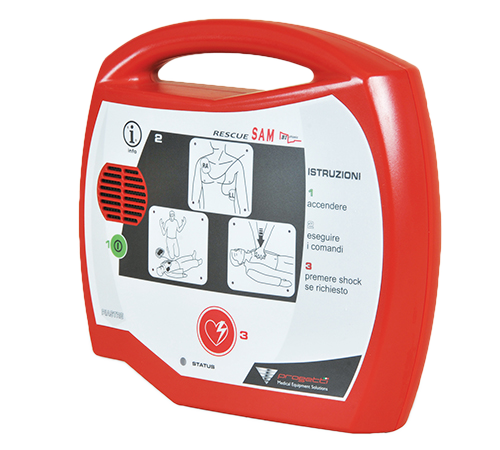

AED Rescue SAM

Defibrillator RESCUE SAM is a semi-automatic external defibrillator designed for providing simple and direct voice prompts and indications for a straightforward rescue operation. It is lightweight and battery powered for maximum portability. RESCUE SAM is designed to treat Ventricular Fibrillation (VF) and Fast Ventricular Tachycardia (VT). Defibrillatore RESCUE SAM è il defibrillatore semi-automatico creato per supportare l’operatore durante le manovre di soccorso con semplici e chiare informazioni vocali oltre che con indicatori luminosi. Dimensioni contenute, peso leggero, un vero portatile a batteria. RESCUE SAM è creato per intervenire nelle situazioni di Fibrillazione Ventricolare (VF) e di Tachicardia Ventricolare (VT)
Standard set: – main unit – disposable defi pads adult – disposable battery pack
• OPERATING MODE: semi-automatic
• WAVEFORM: BTE (biphasic truncated exponential type); impedance compensated
• ENERGY: 200J fixed as new norms ERC 2015 – adult: nominal 200 J into a 50 Ω load – infant/children: less than 50J using optional attenuated pediatric pads
• SHOCK ENERGY ACCURACY: According to IEC EN60601-2-4
• PROTOCOL: voice prompts and indicators guide user through protocol
• PACEMAKER: detection and rejection
• CHARGE CONTROL: automatic by software (arrhythmia detection system and charging control), Analysis time: about 6 seconds
• CHARGE TIME FROM “SHOCK ADVISED”: <6 seconds, typical with new battery • VOICE INSTRUCTIONS: detailed voice messages guide responder through use of the defibrillator • CONTROLS: shock button, info-button, On/Off button • INDICATORS: LEDs (different colors), info-button • CHARGE COMPLETE INDICATOR: Voice prompts (press the shock red button) – Flashing red shock button • DISARM: once charged, the RESCUE SAM disarms if: – The SHOCK button is not pressed within 15 seconds after being armed, or – The Power ON/OFF button is pressed to turn OFF, or – The defibrillator pads are removed from the patient or the pads connector is disconnected • SHOCK DELIVERY: shock is delivered if the SHOCK button is pressed while the defibrillator is armed • SHOCK DELIVERY VECTOR: via adult defibrillator pads in the anterior-anterior (Lead II) position or via reduced-energy pediatric pads in the anterior-posterior position • PATIENT ISOLATION: type BF • BATTERY: 12 Volt DC, 4.2 Ah, lithium manganese dioxide, disposable long-life • BATTERY CAPACITY: min.200 shocks or 4 hours of operating time continuous • AUTOMATED AND USER-ACTIVATED SELF-TESTS: Daily Self-tests: tests internal circuitry, waveform delivery system, battery capacity, and software. – Battery Insertion Test: upon battery insertion, extensive automatic self-tests and user-interactive test check device readiness. • DATA RECORDING AND TRANSMISSION: Dedicated interface to download data – Optional special battery pack for data transmission – Data stored: first 60 minutes of ECG and the entire incident’s events and analysis decision. • CLASS OF PROTECTION: IP 54 (dust/water) • SIZE: 80x300x270 mm • WEIGHT: 2.2 kg with battery pack installed. Standard set: – main unit – disposable defi pads adult – disposable battery pack • semi-automatic operation • BTE waveform • 200J fixed energy • voice prompts and indicators • lightweight and portable • treats Ventricular Fibrillation (VF) and Fast Ventricular Tachycardia (VT)
